M210-W (210W)

• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3564

• • Brand: System Günther

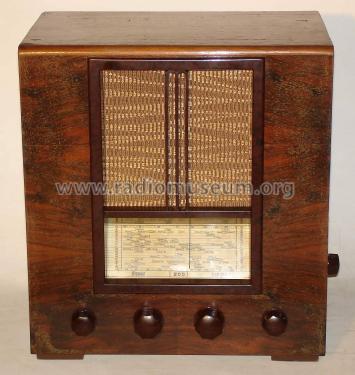

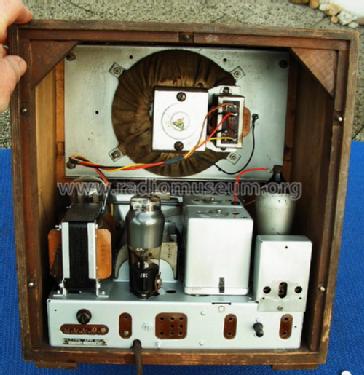

• Picture

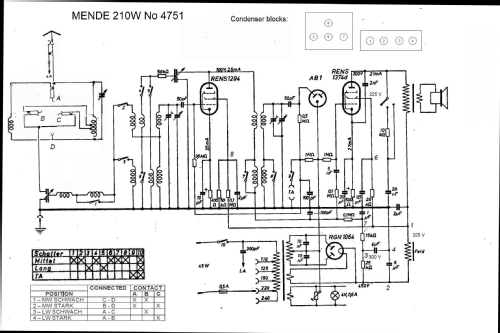

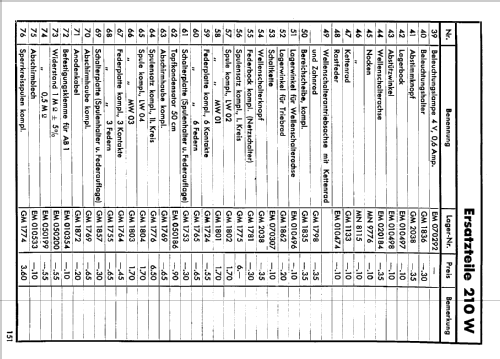

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1294 AB1 RENS1374d RGN1064

• Main principle
• TRF with diode detector; 1 Special; 1 AF stage(s); Reflex

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

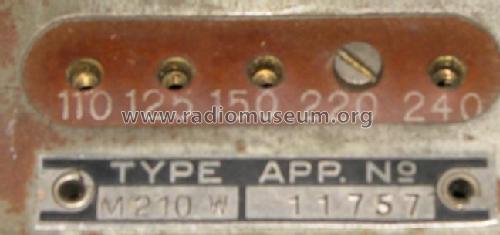

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: M210-W - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 355 x 385 x 260 mm / 14 x 15.2 x 10.2 inch

• Notes
•   Das Typschild des Empfängers zeigt M210W, dagegen führen die Service-Unterlagen die Typbezeichnung 210W. Es handelt sich dabei um dasselbe Modell.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 210.00 RM !

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 316 models, 283 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
