M215-G (215G)

M215-G ; Mende - Radio H. (ID = 28789) Radio

M215-G ; Mende - Radio H. (ID = 28790) Radio

M215-G ; Mende - Radio H. (ID = 4875) Radio

M215-G ; Mende - Radio H. (ID = 170165) Radio

M215-G ; Mende - Radio H. (ID = 170156) Radio

M215-G ; Mende - Radio H. (ID = 170157) Radio

M215-G ; Mende - Radio H. (ID = 170163) Radio

M215-G ; Mende - Radio H. (ID = 170164) Radio

M215-G ; Mende - Radio H. (ID = 170161) Radio

M215-G ; Mende - Radio H. (ID = 170162) Radio
M215-G ; Mende - Radio H. (ID = 23177) Radio M215-G ; Mende - Radio H. (ID = 23188) Radio
M215-G ; Mende - Radio H. (ID = 23179) Radio M215-G ; Mende - Radio H. (ID = 23185) Radio
M215-G ; Mende - Radio H. (ID = 23191) Radio M215-G ; Mende - Radio H. (ID = 23193) Radio
M215-G ; Mende - Radio H. (ID = 23181) Radio M215-G ; Mende - Radio H. (ID = 708174) Radio
M215-G ; Mende - Radio H. (ID = 1985912) Radio M215-G ; Mende - Radio H. (ID = 1985913) Radio
Use red slider bar for more.
M215-G ; Mende - Radio H. (ID = 23177) Radio

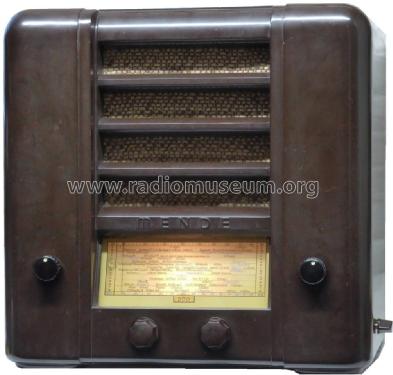

Mende - Radio H.: M215-G [Radio] ID = 23177 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model M215-G (215G), Mende - Radio H. Mende & Co. GmbH, Dresden:
Lautsprecherstoff wahrscheinlich nicht original

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1894 BB1 BL2 U918
Main principle TRF with diode detector; Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: M215-G - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 385 x 375 x 270 mm / 15.2 x 14.8 x 10.6 inch
Notes Das Typschild des Empfängers zeigt M215G, dagegen führen die Service-Unterlagen die Typbezeichnung 215G. Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

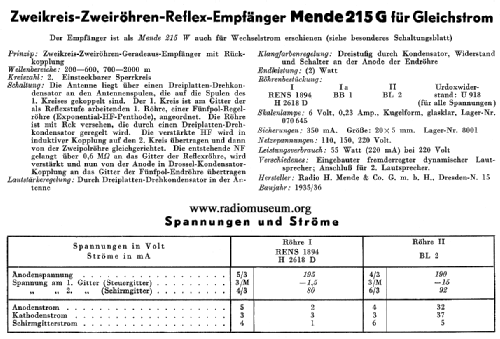

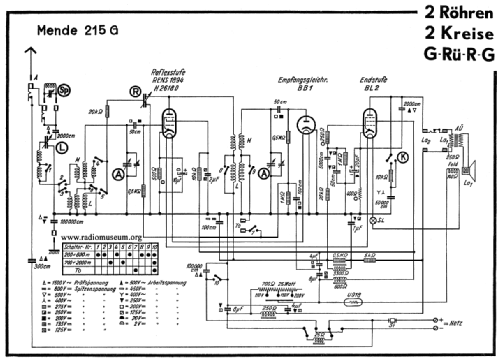

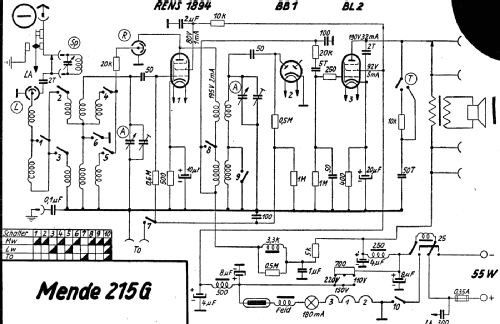

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
