250B

250B; Mende - Radio H. (ID = 1173182) Radio

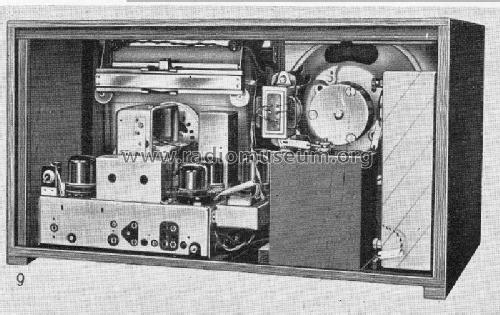

250B; Mende - Radio H. (ID = 514) Radio 250B; Mende - Radio H. (ID = 1295622) Radio
Use red slider bar for more.
250B; Mende - Radio H. (ID = 514) Radio
Mende - Radio H.: 250B [Radio] ID = 514 700x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model 250B, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DCH11 DF11 DAF11 DC11 DDD11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 120 / 1,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 250B - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 295 x 260 mm / 21.3 x 11.6 x 10.2 inch
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 310 models, 280 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
