For model 50G, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RES094s RES094s RES094s RE134S
Main principle TRF with regeneration; 1 Special; 2 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 50G - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 290 x 250 mm / 20.9 x 11.4 x 9.8 inch
Notes [501]

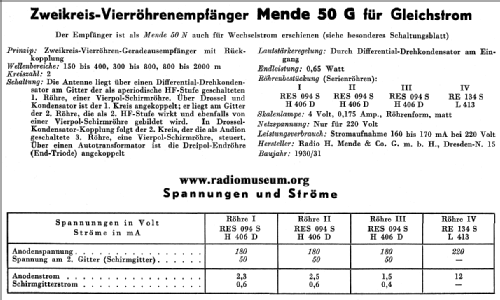

Ein ausführlicher Gerätebericht über den Mende 50G findet sich in der Funkschau Heft 18 1931
Price in first year of sale 320.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

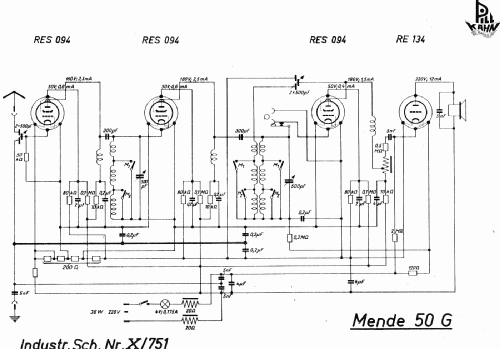

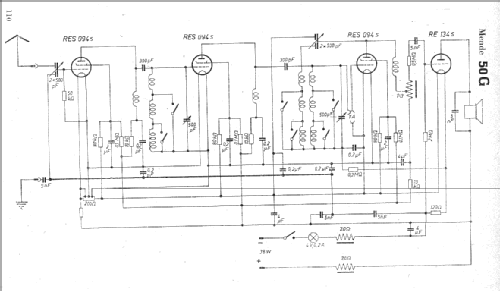

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Kat.Radio Arlt 1931

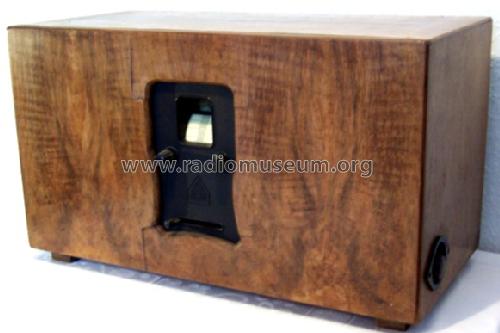

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
