For model AE35 6V, Mende - Radio H. Mende & Co. GmbH, Dresden:
Bild von Wolfgang Bauer.

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1935/1936 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: EK1 EF2 EB1 EF1 EL1 EZ1
Semiconductors (the count is only for transistors) Zerhacker
Main principle Superheterodyne (common); ZF/IF 482 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AE35 [6V] - Mende - Radio H. Mende & Co.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 298 x 165 x 158 mm / 11.7 x 6.5 x 6.2 inch
Notes 2teilig!
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 314.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

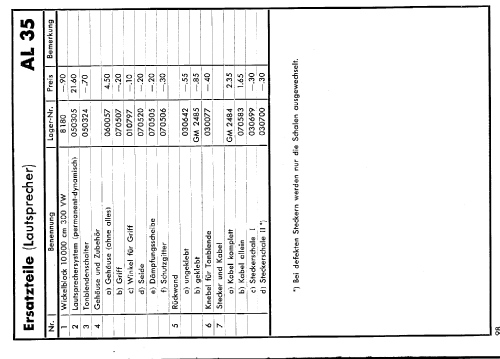

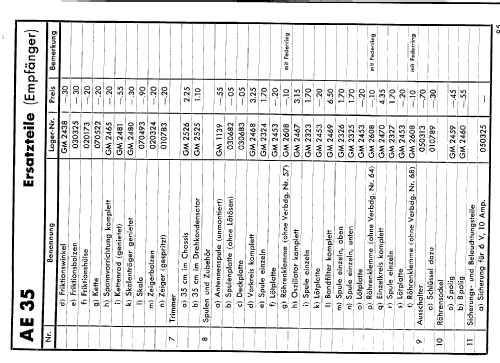

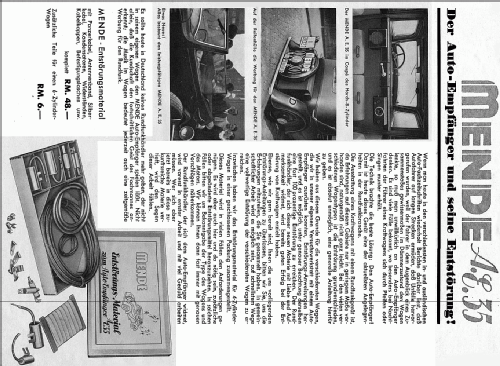

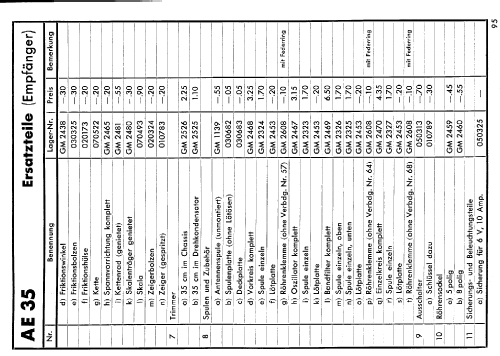

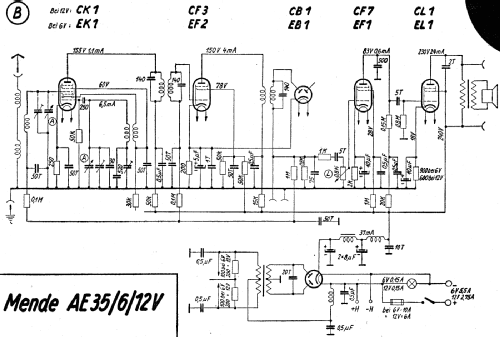

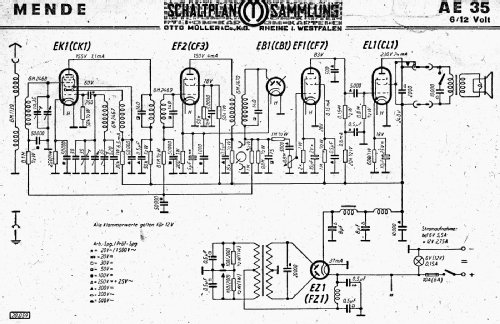

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
