For model E152, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1931 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE084 RE034 RE134 or RES164
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E152 - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 265 x 210 x 190 mm / 10.4 x 8.3 x 7.5 inch
Notes Batteriebetriebener 3-Röhren-Geradeausempfänger mit Rückkopplung,
2 Wellenbereiche(LW,MW).
Anodenbatterie mit mehreren Anzapfungen nötig.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 80.00 RM

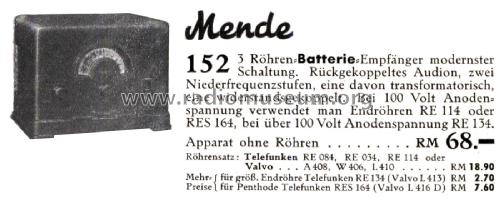

Mentioned in Katalog Radio-Schnorr 1934

Model page created by Volker MARTIN. See "Data change" for further contributors.
