• Year
  • 1929/1930
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 3486
    • Brand: System Günther

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 1 Special; 2 AF stage(s); Neutrodyne
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.

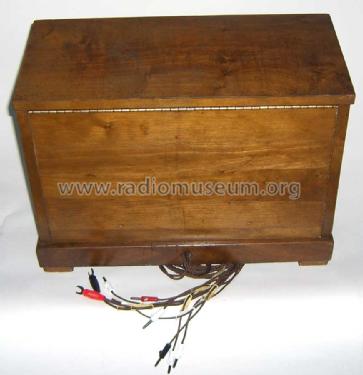

  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: E48 - Mende - Radio H. Mende & Co.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 295 x 220 mm / 16.5 x 11.6 x 8.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Price in first year of sale
  • 254.00 RM !
  • Circuit diagram reference
  • Röhren in FS-Bestückungstabellen
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
