- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1927–1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3462
-
- Brand: System Günther
Kreuz
Kreuz

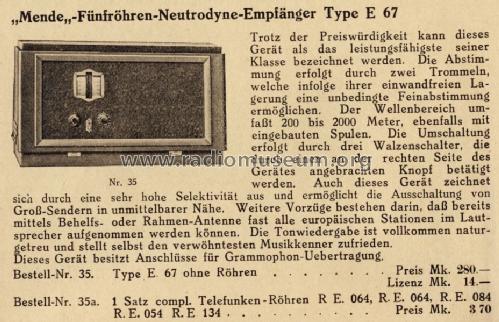

Radio Schnorr Katalog 1930

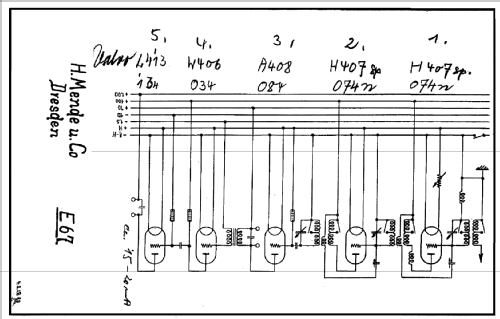

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: E67 - Mende - Radio H. Mende & Co.
- Dimensions (WHD)
- 620 x 370 x 230 mm / 24.4 x 14.6 x 9.1 inch
- Notes
- 2 Trommeln; Steilpult (?) evtl. 27/28 (alt) und 28/29 (neu!)
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 333.00 RM !
- Source of data
- Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb

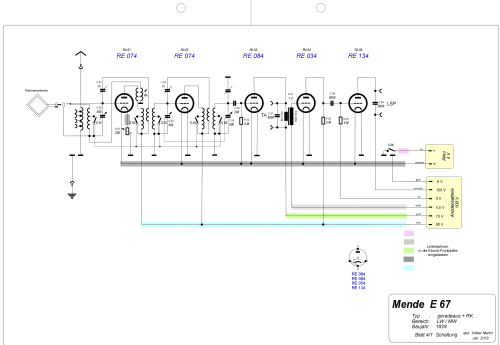

- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Mentioned in
- Radio Schnorr 1929
- Picture reference

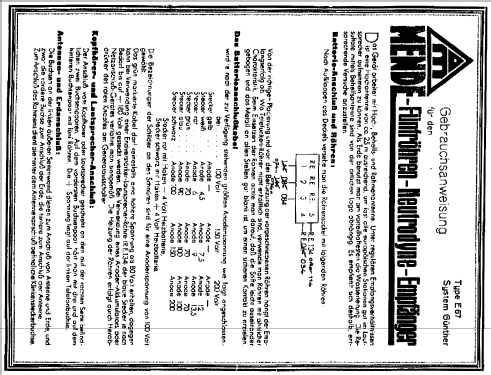

- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
