Einbereichs-Super 360W

Einbereichs-Super 360W; Mende - Radio H. (ID = 23709) Radio
Einbereichs-Super 360W; Mende - Radio H. (ID = 476) Radio
Use red slider bar for more.
Einbereichs-Super 360W; Mende - Radio H. (ID = 476) Radio

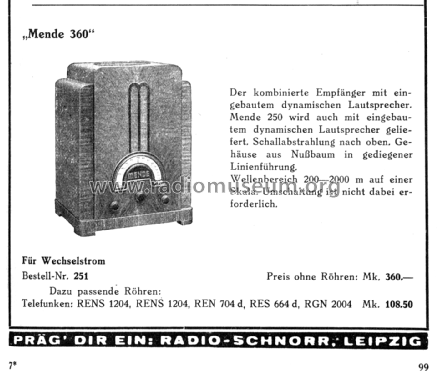

Mende - Radio H.: Einbereichs-Super 360W [Radio] ID = 476 407x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Einbereichs-Super 360W, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: REN704d RENS1204 RENS1204 RES664d RGN2004
Main principle Superhet, single span (BC/MW and LW in 1 band); ZF/IF 1648 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Einbereichs-Super 360W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 505 x 320 mm / 15.7 x 19.9 x 12.6 inch
Notes

LS strahlt nach oben!

Chassis wie Mende 250W.

Price in first year of sale 360.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference FS-Bestückungstab. (wahrsch. m.Fehler)
Mentioned in Radio-Schnorr-Katalog Nr.53 1931/32
Literature/Schematics (1) Max Holzinger 1931/32
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
