Super MS195-GW (195GW)

Super MS195-GW ; Mende - Radio H. (ID = 404108) Radio

Super MS195-GW ; Mende - Radio H. (ID = 760881) Radio

Super MS195-GW ; Mende - Radio H. (ID = 760882) Radio

Super MS195-GW ; Mende - Radio H. (ID = 760885) Radio

Super MS195-GW ; Mende - Radio H. (ID = 760883) Radio

Super MS195-GW ; Mende - Radio H. (ID = 760884) Radio

Super MS195-GW ; Mende - Radio H. (ID = 4524) Radio

Super MS195-GW ; Mende - Radio H. (ID = 2253135) Radio
Super MS195-GW ; Mende - Radio H. (ID = 1098991) Radio Super MS195-GW ; Mende - Radio H. (ID = 268205) Radio
Super MS195-GW ; Mende - Radio H. (ID = 708197) Radio Super MS195-GW ; Mende - Radio H. (ID = 838623) Radio
Super MS195-GW ; Mende - Radio H. (ID = 1098989) Radio Super MS195-GW ; Mende - Radio H. (ID = 1098990) Radio
Super MS195-GW ; Mende - Radio H. (ID = 1098992) Radio Super MS195-GW ; Mende - Radio H. (ID = 1098993) Radio

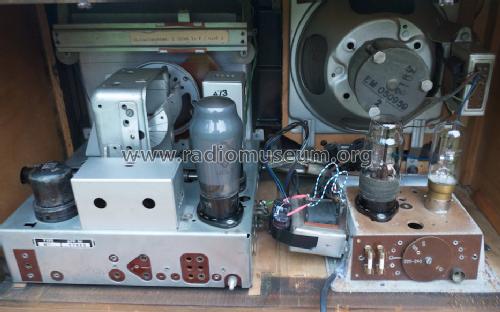

Super MS195-GW ; Mende - Radio H. (ID = 1522274) Radio Super MS195-GW ; Mende - Radio H. (ID = 1522276) Radio
Use red slider bar for more.
Super MS195-GW ; Mende - Radio H. (ID = 1098991) Radio

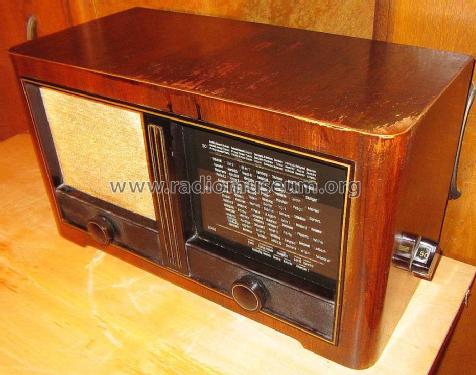

Mende - Radio H.: Super MS195-GW [Radio] ID = 1098991 933x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super MS195-GW (195GW), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410P
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19.5 cm = 7.7 inch
Power out
from Radiomuseum.org Model: Super MS195-GW - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 295 x 260 mm / 21.3 x 11.6 x 10.2 inch

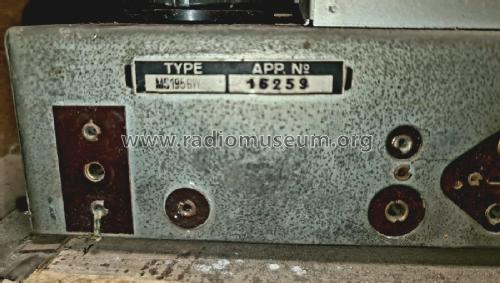

Notes Das Typschild des Empfängers zeigt MS195GW, dagegen führen die Service-Unterlagen die Typbezeichnung 195GW.
Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 215.00 RM
Collectors' prices
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

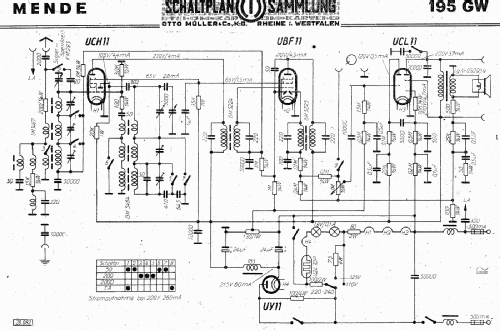

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
