• Year
  • 1953 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 161428

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

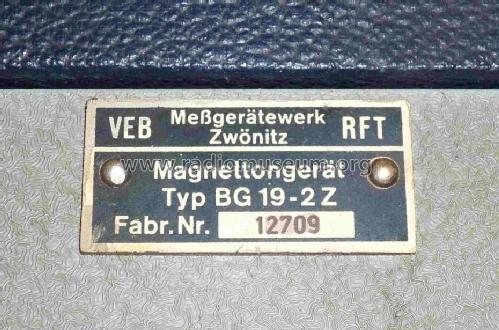

  • Model: Magnettongerät BG19-2Z - Messgerätewerk Zwönitz, VEB;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 330 x 290 x 180 mm / 13 x 11.4 x 7.1 inch
  • Notes
  • Halbspur 19,05 cm/s. Kein Löschkopf (siehe Löschdrossel BG19Z-LD), Hf-Vormagnetisierung, nur Wiedergabeverstärker. Aufnahme vom Lautsprecherausgang (Radio/Verstärker), Übersteuerungsanzeige durch Glimmlampe.

  • Net weight (2.2 lb = 1 kg)
  • 12.7 kg / 27 lb 15.6 oz (27.974 lb)
  • Author
  • Model page created by Andreas Reuther. See "Data change" for further contributors.
