• Year
  • 1965/1966
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 77943

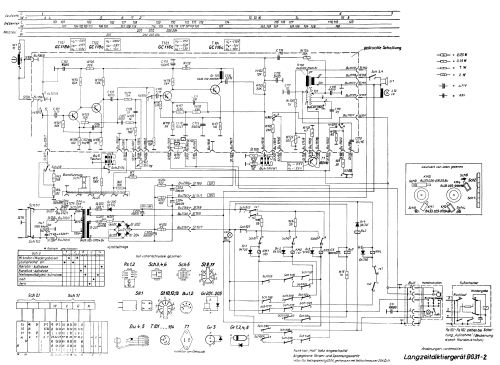

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 127, 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

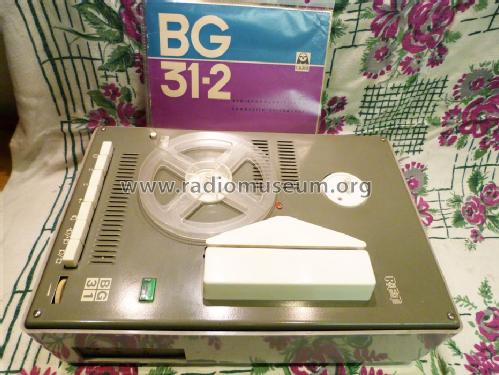

  • Model: Diktiergerät BG31-2 - Messgerätewerk Zwönitz, VEB;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 381 x 122 x 263 mm / 15 x 4.8 x 10.4 inch
  • Notes
  • Doppelspurgerät 4,76 cm/s; 15-cm-Spulen; 300-5000 Hz; Bedienung durch Handmikrofon DDM65 mit Schaltern oder Fußschalter und Ohrhörer oder Tasten am Gerät.

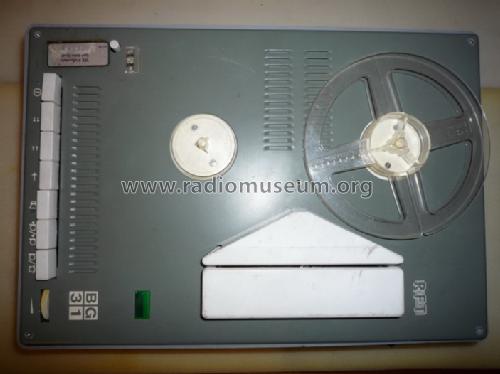

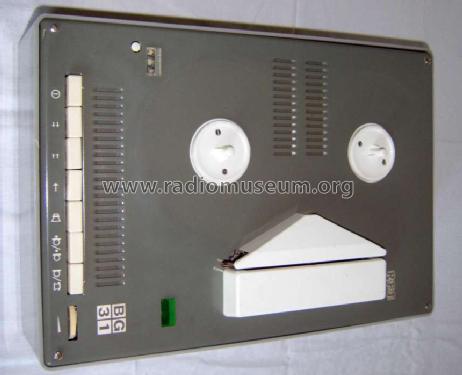

    Dieses Modell ist die Sparversion vom BG31. Es ist äußerlich an der nur einen grünen Kontrolllampe, rechts von den Tasten und dem links eingebauten Zählwerk zu erkennen.

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Collector info (Sammler)
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
