- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 257095

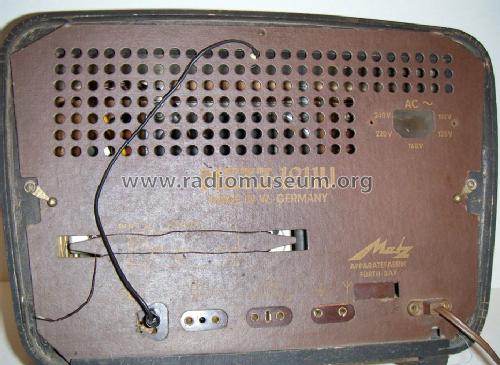

Source: ebay.com, ditchduster, #281429331142
Source: ebay.com, ditchduster, #281429331142
Source: ebay.com, ditchduster, #281429331142
Source: ebay.com, ditchduster, #281429331142
Source: ebay.com, ditchduster, #281429331142
Source: ebay.com, ditchduster, #281429331142
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF ?/10700 kHz; Export model
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1211U - Metz Transformatoren- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 390 x 280 x 220 mm / 15.4 x 11 x 8.7 inch
- Notes
-
Metz 1211U ist ein Exportmodell für die USA.
FM 88...108 MHz
SW/KW: 5.9...16 MHzSiehe auch das inländische Modell 211U mit UKW, MW und LW.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
