305GW

305GW; Metz Transformatoren (ID = 12700) Radio
305GW; Metz Transformatoren (ID = 2512235) Radio 305GW; Metz Transformatoren (ID = 2512237) Radio
305GW; Metz Transformatoren (ID = 2512236) Radio 305GW; Metz Transformatoren (ID = 2512238) Radio
305GW; Metz Transformatoren (ID = 2512239) Radio 305GW; Metz Transformatoren (ID = 2512240) Radio
305GW; Metz Transformatoren (ID = 2512241) Radio 305GW; Metz Transformatoren (ID = 2512244) Radio
305GW; Metz Transformatoren (ID = 1655824) Radio 305GW; Metz Transformatoren (ID = 1655825) Radio
Use red slider bar for more.
305GW; Metz Transformatoren (ID = 2512235) Radio
Metz Transformatoren: 305GW [Radio] ID = 2512235 1400x1152
Select picture or schematic to display from thumbnails on the right and click for download.
For model 305GW, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF80 UC92 UCH81 UF85 UM85 UABC80 UL41
Semiconductors (the count is only for transistors) E250C120
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 305GW - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 373 x 285 mm / 22.8 x 14.7 x 11.2 inch
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 329.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54
Mentioned in Rundfunk- und Fernseh-Katalog 1953/54 (S.61)
Literature/Schematics (1) Rundfunk- Phono- und Fernseh-Katalog 1953-1954 (Thiele)

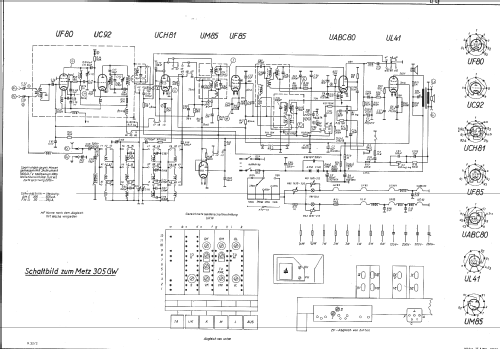

Literature/Schematics (2) -- Schematic
