• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24927

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 ECC83 EM84 ELL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

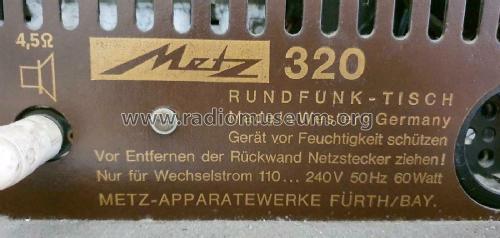

• Model: 320 [LMU] - Metz Transformatoren- und

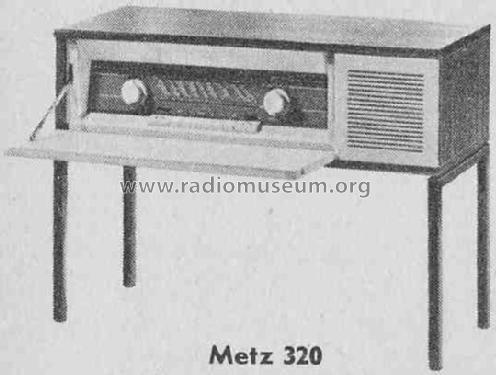

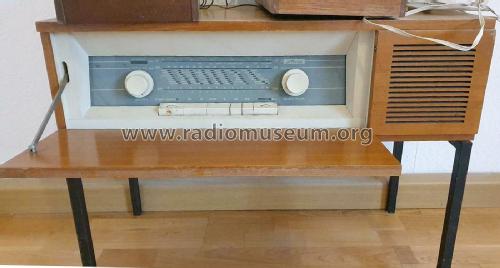

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 760 x 590 x 360 mm / 29.9 x 23.2 x 14.2 inch

• Notes
• Dioden: K5/61, 2× K5/105. Stereo-NF-Verstärker mit 2 Endstufen je 2 W; Stereo-Decoder nachrüstbar.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 498.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
