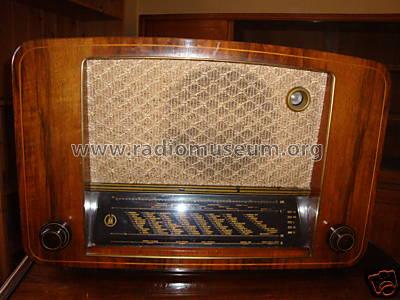

380W; Metz Transformatoren (ID = 600825) Radio 380W; Metz Transformatoren (ID = 1107826) Radio
380W; Metz Transformatoren (ID = 1107828) Radio 380W; Metz Transformatoren (ID = 1107830) Radio
380W; Metz Transformatoren (ID = 1107832) Radio
Use red slider bar for more.
380W; Metz Transformatoren (ID = 1664481) Radio

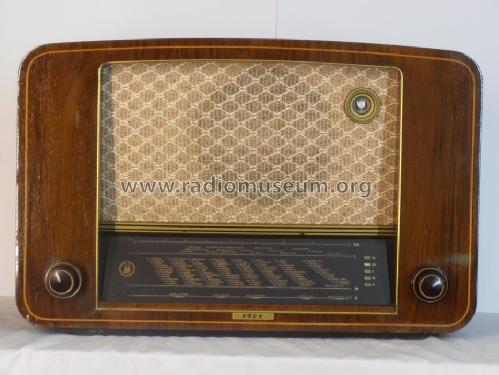

Metz Transformatoren: 380W [Radio] ID = 1664481 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 380W, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF42 ECH42 EAF42 EAF42 EM4 EAF42 EL41
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 380W - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 380 x 250 mm / 22.8 x 15 x 9.8 inch
Notes 2 Germanium-Dioden RL6 zur UKW Demodulation.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 418.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1951/52
