belform 120 LMU

belform 120; Metz Transformatoren (ID = 2530727) Radio belform 120; Metz Transformatoren (ID = 353793) Radio
Use red slider bar for more.

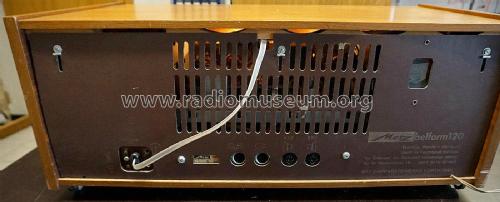

belform 120; Metz Transformatoren (ID = 2530727) Radio
Metz Transformatoren: belform 120 [Radio] ID = 2530727 1200x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model belform 120 LMU, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth:
Q: Metz, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1964–1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 ECC83 EM84 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: belform 120 [LMU] - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 230 x 300 mm / 22.8 x 9.1 x 11.8 inch
Notes Stereo-Decoder nachrüstbar (78,- DM); Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 529.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
