• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1962–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24943

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 ECC83 EM84 ELL80

• Number of Transistors

• Semiconductors
• K5/61 K5/105 K5/105 B250C150

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

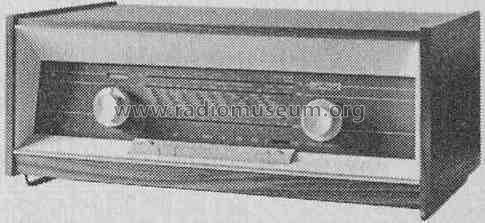

• Model: belform 120 [MKU] - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 230 x 300 mm / 22.8 x 9.1 x 11.8 inch

• Notes

• Stereo-NF-Verstärker mit 2 Endstufen je 3 W.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 389.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
