- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1966–1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 112705

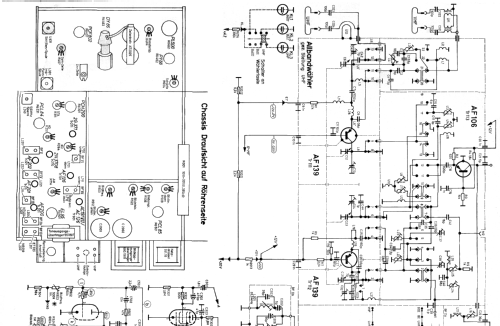

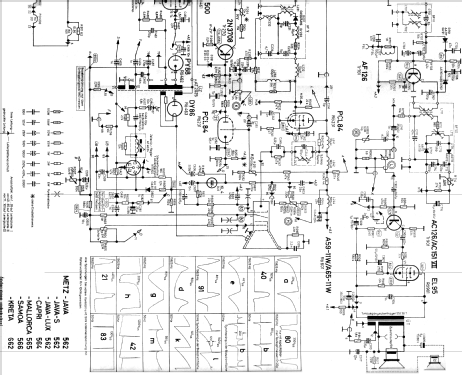

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 10
- Semiconductors
- AF106 AF139 AF139 AF126 AC126 or. AC151 AF200 AF201 AF202 2G371 2N3708 OA90 OA91 OA81 AA119 V40C2 E20C3 BY100
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Java 562 - Metz Transformatoren- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 700 x 490 x 300 mm / 27.6 x 19.3 x 11.8 inch
- Notes
-
VHF/UHF. Technische Daten wie Metz Samoa 566, jedoch anderes Gehäuse.
Anschluss für Kabelfernbedienung FB 116 (Lautstärke und Helligkeit).
Dioden teilweise mehrfach vohanden.
- Net weight (2.2 lb = 1 kg)
- 28 kg / 61 lb 10.8 oz (61.674 lb)
- Source of data
- Handbuch VDRG 1966/1967
- Mentioned in
- - - Manufacturers Literature (Kundendienstschrift FS 66/67)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
