• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128442

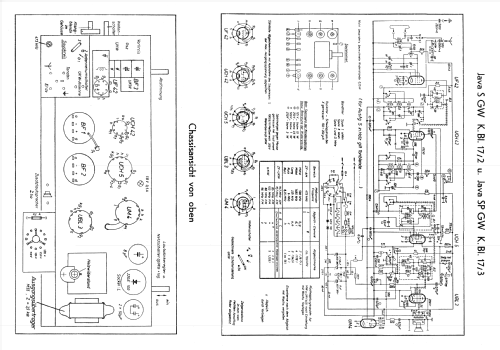

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UF42 UCH42 UCH5 UBL3 UM4

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Java S VS/A VII - Metz Transformatoren- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 370 x 230 mm / 22.8 x 14.6 x 9.1 inch

• Notes
• Flankendemodulator für UKW

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 320.00 DM

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
