For model Java SP VS/A VI (17/3), Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UF42 UCH42 UCH5 UBL3 UM4
Semiconductors (the count is only for transistors) 220E100L
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Java SP VS/A VI - Metz Transformatoren- und
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 305 x 210 mm / 18.3 x 12 x 8.3 inch
Notes

Wellenbereiche:

  • UK 85 - 104 MHz
  • K 5,9 - 18 MHz
  • M 514 - 1640 kHz
  • L 150 - 300 kHz

Sprache-Musikschalter. Skalenlampe 18V 0,1A. Gewicht laut Datenblatt 8,5kg.

Siehe auch Metz Java S VS/A VII (17/2) im Holzgehäuse.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 268.00 DM
Mentioned in Taxliste Franzis Verlag

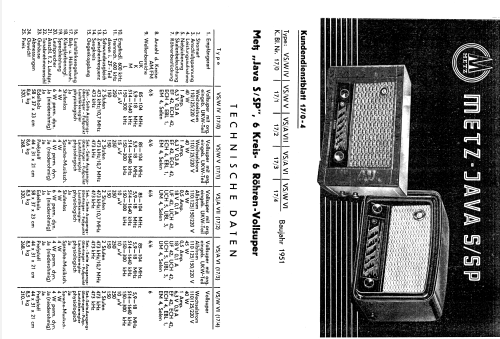

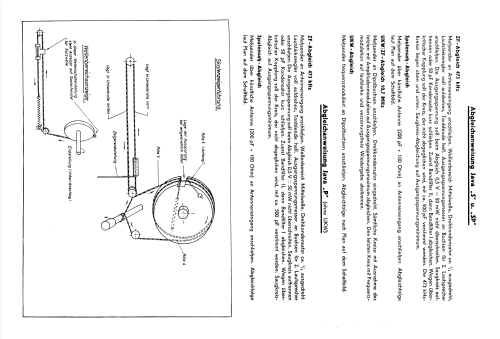

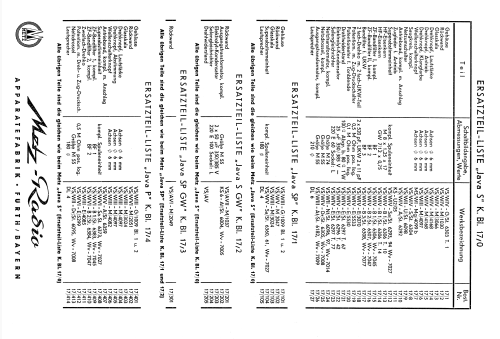

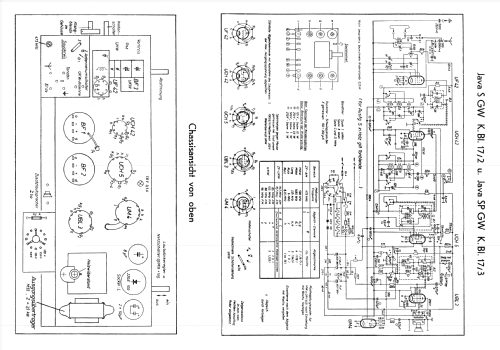

Literature/Schematics (1) - - Manufacturers Literature (Metz Kundendienstblatt 17/0-4)

Model page created by Boris Witke. See "Data change" for further contributors.
