For model Philharmonie MK/W66, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EF9 EBL1 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Philharmonie MK/W66 - Metz Transformatoren- und
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 999 x 900 x 450 mm / 39.3 x 35.4 x 17.7 inch
Notes
Net weight (2.2 lb = 1 kg) 54 kg / 118 lb 15.1 oz (118.943 lb)
Price in first year of sale 820.00 DM
Source of data Radiokatalog Band 1, Ernst Erb

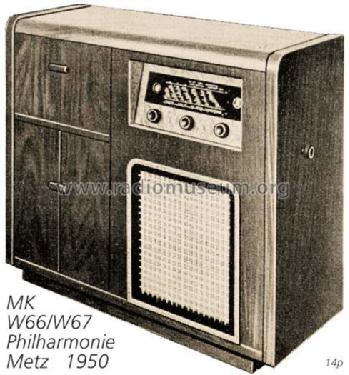

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
