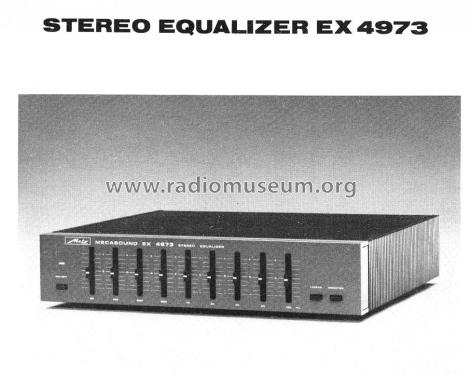

Mecasound Stereo Equalizer EX 4973

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786375) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786376) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786377) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786378) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786379) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786380) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786381) Ampl/Mixer

Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786382) Ampl/Mixer
Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 2436463) Ampl/Mixer Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 2436465) Ampl/Mixer
Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 2436464) Ampl/Mixer Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 786383) Ampl/Mixer
Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 1914290) Ampl/Mixer Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 1951879) Ampl/Mixer
Use red slider bar for more.
Mecasound Stereo Equalizer EX 4973; Metz Transformatoren (ID = 2436463) Ampl/Mixer
Metz Transformatoren: Mecasound Stereo Equalizer EX 4973 [Ampl/Mixer] ID = 2436463 1395x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mecasound Stereo Equalizer EX 4973, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth:
mit freundlicher Erlaubnis des eBay Verkäufers Dong

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1979–1981 Category: Audio Amplifier or -mixer
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mecasound Stereo Equalizer EX 4973 - Metz Transformatoren- und
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 300 x 60 x 250 mm / 11.8 x 2.4 x 9.8 inch
Notes

Metz EX 4973

3 IC; Stereo Equalizer der Metz Mecasound MINI Komponenten Serie, 9 Pegelregler für 12 dB-Anhebung oder Absenkung, Mittenfrequenz (jeweils im Oktav-Abstand)

Aluminiumfrontblende in braun metallic

Verkaufspreis in 1980 ca DM 330,-

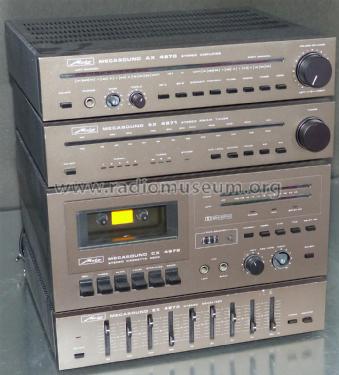

Die Metz MINI - Komponenten Serie besteht aus:

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Mentioned in HiFi Jahrbuch 1980

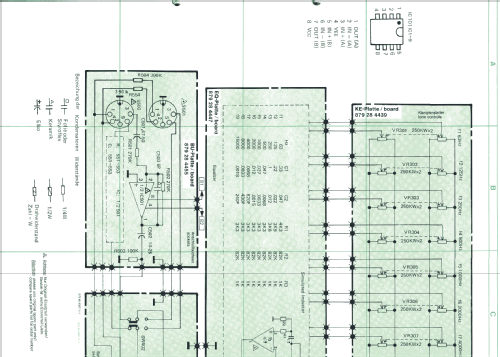

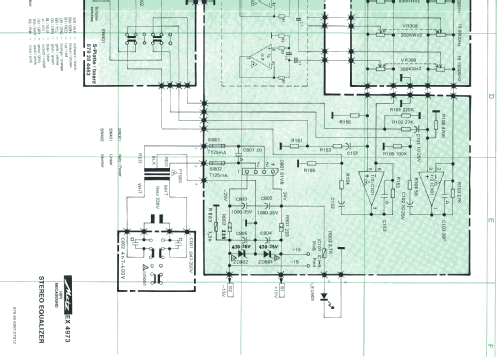

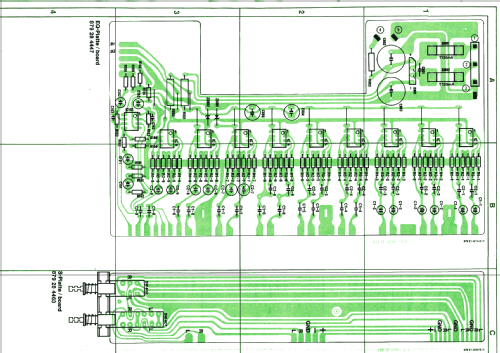

Literature/Schematics (1) Original Metz Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.



All listed radios etc. from Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Here you find 572 models, 440 with images and 295 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
