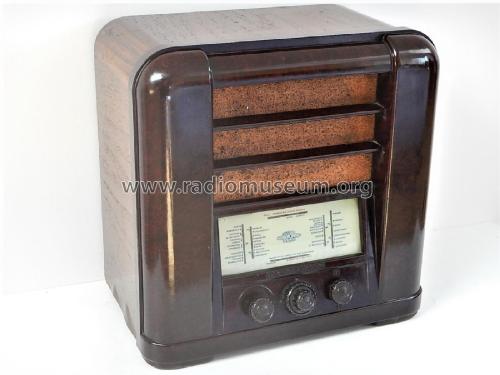

Primavera MK304

Primavera MK304; Microphona Mikrofona (ID = 17131) Radio
Primavera MK304; Microphona Mikrofona (ID = 98630) Radio Primavera MK304; Microphona Mikrofona (ID = 98631) Radio
Primavera MK304; Microphona Mikrofona (ID = 98632) Radio Primavera MK304; Microphona Mikrofona (ID = 98633) Radio
Use red slider bar for more.

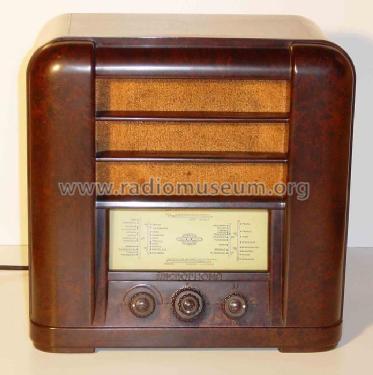

Primavera MK304; Microphona Mikrofona (ID = 98630) Radio
Microphona Mikrofona: Primavera MK304 [Radio] ID = 98630 698x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Primavera MK304, Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice

Country:  Czechoslovakia
Manufacturer / Brand:  Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice
alternative name

Telefony Microfona
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

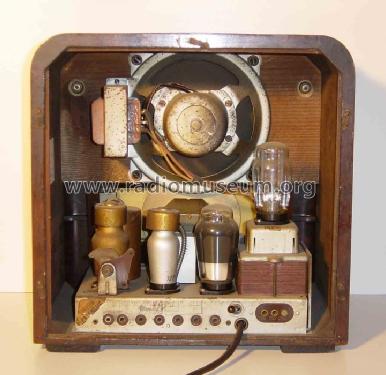

Valves / Tubes 4: AF7 AC2 AL1 AZ1
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Primavera MK304 - Microphona Mikrofona, Bratri
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 345 x 210 mm / 13.4 x 13.6 x 8.3 inch
Notes Wooden case with bakelit front.
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947
