• Country
• Czechoslovakia

• Manufacturer / Brand
• Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23102

• • alternative name: Telefony Microfona

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AF7 ABC1 AL1 AZ1

• Main principle
• TRF with diode detector; ZF/IF 1 kHz; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

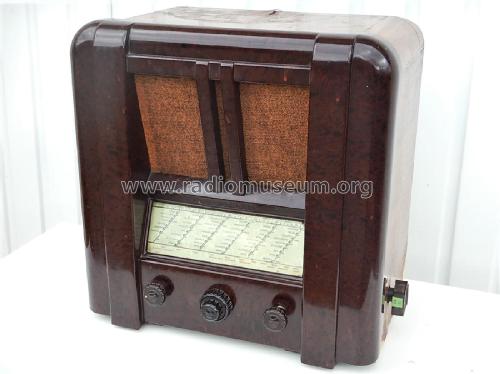

• Model: Superdual MK305-I - Microphona Mikrofona, Bratri

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Vorderfront Bakelit. 45W Verbrauch. Gegenüber MK305-II und 306-II hat das Modell kleine Schaltungsänderungen - so z.B. ein Widerstand 1,5K vor dem Steuergitter der Endröhre.

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Other Models

• Here you find 69 models, 52 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
