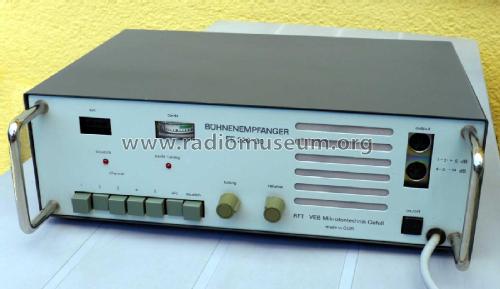

Bühnenempfänger FE220-30

Mikrofontechnik Gefell, VEB; Gefell (Ostd.)

  • Year
  • 1988 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 274165
    • alternative name: Microtech Gefell GmbH

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Bühnenempfänger FE220-30 - Mikrofontechnik Gefell, VEB;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 340 x 105 x 220 mm / 13.4 x 4.1 x 8.7 inch
  • Notes
  • FM-Bühnenempfänger für drahtlose Mikrofone mit 5 Empfangskanälen mit Feinabstimmung.
    K1:36,7 MHz; K2:37,1 MHz; K3:37,9 MHz (K4/K5 unbekannt).
    Antenneneingang 240 / 300 Ω, AFC und Rauschsperre (Squelch) schaltbar. Frontlautsprecher, 2 Tonbandausgänge mit jeweils +6dB und -14dB.
    Optische Ausführung ähnlich FE220-40, jedoch mit Zeigerinstrument.

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
