• Year
  • 1975
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 104592
    • alternative name: Microtech Gefell GmbH

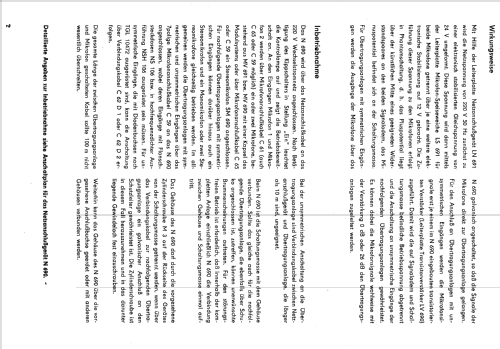

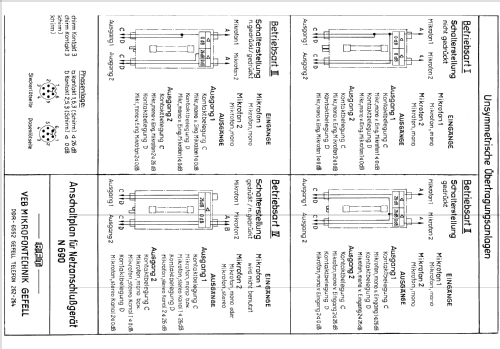

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Netzanschlussgerät N690 - Mikrofontechnik Gefell, VEB;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 118 x 125 x 220 mm / 4.6 x 4.9 x 8.7 inch
  • Notes
  • Netzanschlussgerät mit integriertem Transistorverstärker für zwei transistorisierte Kondensatormikrofone mit symmetrischem Ausgang z.B. MV 691, MV692.
    Je nach Beschaltung des Buchsensteckers am Ausgang können je Kanal das direkt durchgeschleifte, symmetrische Mikrofonsignal bzw. ein verstärktes, unsymmetrisches Signal abgenommen werden. Die Schalter für die Verstärkungszuschaltung bewirken unterschiedliche Signalverteilungen an den Ausgängen. Phantomspeisung je Kanal: 12 V / 4 mA, elektronisch stabilisiert
    Signalverstärkung je Kanal zuschaltbar: +26 dB.
  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Price in first year of sale
  • 680.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
