Wireless Set No.19 Mk III (Mk 3) Canadian

Wireless Set No.19 Mk III ; MILITARY Canada (ID = 757079) TRX

Wireless Set No.19 Mk III ; MILITARY Canada (ID = 805972) TRX
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 496997) TRX Wireless Set No.19 Mk III ; MILITARY Canada (ID = 496999) TRX
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 512882) TRX Wireless Set No.19 Mk III ; MILITARY Canada (ID = 512883) TRX
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 512884) TRX Wireless Set No.19 Mk III ; MILITARY Canada (ID = 512885) TRX
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 512887) TRX Wireless Set No.19 Mk III ; MILITARY Canada (ID = 756280) TRX
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 788492) TRX Wireless Set No.19 Mk III ; MILITARY Canada (ID = 1089347) TRX
Use red slider bar for more.
Wireless Set No.19 Mk III ; MILITARY Canada (ID = 496997) TRX
MILITARY Canada: Wireless Set No.19 Mk III [TRX] ID = 496997 933x479

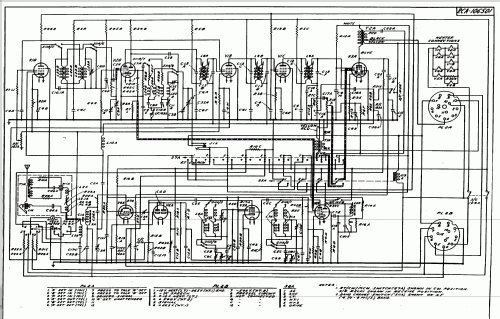

Select picture or schematic to display from thumbnails on the right and click for download.
For model Wireless Set No.19 Mk III (Mk 3) Canadian, MILITARY Canada (different makers for same model):

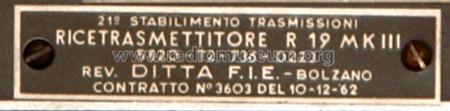

Italian Frontpanel, revised in Italy 1962

Country:  Canada
Manufacturer / Brand:  MILITARY Canada (different makers for same model)
Year: 1943 ? Category: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 15: 6K7G 6K8G 6K7G 6K7G 6B8G 6K8G EF50 6H6 807 6K7G 6V6G 6V6G 6K7G 6K7G E1148
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 / 24 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Wireless Set No.19 Mk III [Canadian] - MILITARY Canada different
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 445 x 210 x 300 mm / 17.5 x 8.3 x 11.8 inch
Notes Wireless Set No. 19 Canadian / CDN: Two-band high-power transceiver for armored fighting vehicles (AFV), trucks and stationary use consisting of a medium range shortwave ("A-Set") and a short distance VHF transceiver ("B-Set").
Operating modes: CW and AM.
A-Set 2-4.5 / 4.5-8 MHz @ 5W (CW) / 2.5W (AM), B-Set 229-241 MHz @ 0,4W (AM).
With RF No.2 amplifier used with A-Set power output increases up to 70W (CW) / 18W (AM).
WS No.19 was originally designed in the UK, in Summer 1941, the Department of National Defence authorized the production of the set in Canada, USA and Australia, as well.
The electric circuit differs slightly from the British original: a FLICK ADJ fine tuning control in the right lower corner next to the right dial and a AVC ON-OFF switch underneath the right handle have been added, Canadian W.S.19 power supplies differ considerably from the British equivalents.
Most Canadian sets feature a English / Cyrillic lettering on the front panel as they were produced under a Lend-Lease contract to supply the Russian Army.
Net weight (2.2 lb = 1 kg) 18.2 kg / 40 lb 1.4 oz (40.088 lb)
Collectors' prices
Source of data - - Data from my own collection
Literature/Schematics (1) Wireless for the Warrior Vol. 2, Louis Meulstee

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from MILITARY Canada (different makers for same model)
Here you find 5 models, 5 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
MILITARY Canada: Wireless Set No.19 Mk III
Threads: 2 | Posts: 2
Hits: 1400     Replies: 0
mil-can: Mk III (Mk 3); Wireless Set No.19
Bruce Morgenstern
22.Jan.14
  1



MAIN DIFFERENCES

Between

WIRELESS SET, CANADIAN, NO. 19 MK. III

And

WIRELESS SET, NO. 19 MK. III OF BRITISH

MANUFACTURE



Front view of, Wireless Set (Canadian) No. 19 Mark III.



Canadian and British Wireless sets No. 19 MK. III are fully, mutually interchangeable in all their applications and installations. All accessories and essential spares such as microphones and headphones, control boxes, variometer, aerials, etc., are individually and mutually interchangeable. Most of the components used in the Canadian, Mk.III Set, are the same as those used in the British version. Not all of the, however, are fully, mutually interchangeable. The most important differences between the two versions are listed below:

 1.  The Canadian set includes a Frequency Adjuster not used on the British Set. The presence of this makes the main tuning condenser non-interchangeable with the British gang-condenser.

2.  The Canadian Set includes an AVC ON-OFF Switch. Such a switch is not used on the British Set and the British panel has no provisions for this Control.

3.  The British Set has a new circuit for the heterodyne oscillator, while the Canadian set uses the same system as used on the Mk. II Set. That means that all heterodyne oscillator coils and R.F. coils in the sender are non-interchangeable.

4.  The British Set uses a new type of circuit for the automatic drive control of the output stage, while the Canadian Set uses the same circuit as on the Mk. II.

5.  The British Set has a new meter transformer circuit in the Variometer, while the Canadian Set uses the same as on the Mk II.

6.  The British Set includes a resistance-capacitance network as tone-filter on CW, which is not used on the Canadian Set.

7.  The Canadian Supply Unit is entirely different from the British version and uses an entirely different dynamotor. Hardly any parts of the Supply Unit are interchangeable but the Supply Units as a whole are fully, mutually, interchangeable.

These are the main differences between the British and Canadian versions but it must be pointed out that the arrangements of components and parts on the chassis, differ quite considerably, and that maintenance spares for the Canadian Set cannot be used without careful consideration in the British model and vice versa.

Source: Working Instructions, Wireless Set (Canadian) No. 19 Mark III. Communications and Electrical Design Department of National Defence, Ottawa.    RCA 113923-1

Bruce Morgenstern










Hits: 2168     Replies: 0
mil-can: Mk III (Mk 3); Wireless Set No.19
Jan Terranea
12.Apr.10
  1

The Canadian WS19 MK III is more like the MK II than the British version, using the same heterodyne oscillator-circuit, the same PA-tank circuit and drive control, and omits the British CW-audio-peak-filter.
