PRC-9 RT-175A / PRC-9; MILITARY U.S. (ID = 776172) Military
MILITARY U.S.: PRC-9 RT-175A / PRC-9 [Military] ID = 776172 933x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model PRC-9 RT-175A / PRC-9, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1951–1962 ? Category: Military Equipment
Valves / Tubes 14: 1AD4 5678 6286 5672 5A6
Main principle Transceiver; ZF/IF 4300 kHz; 1 AF stage(s)
Tuned circuits 9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 1,5 & 6 & 67,5 & 135 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PRC-9 RT-175A / PRC-9 - MILITARY U.S. different makers
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 265 x 77 x 470 mm / 10.4 x 3 x 18.5 inch
Notes The RT-175A FM-transceiver is a main component of the PRC-9 radio-equipment. Only in literature we can find the name PRC-9A, but on the equipment the -A suffix is never present.
Frequency range is 27-39 MHz, FM (F3), 1 W.
VFO-tuning and a crystal calibrator stage giving 4,3 MHz checkpoints. In the receiver-part we find 2 RF-stages, 4 IF stages, a discriminator FM-detector with 2 germanium diodes, a squelch-circuit and a pulse sweep generator to control the transmit frequency.
At the top we find all controls and connectors for the headset and 3 antennas: long whip AT271, short whip AT-272, and a ca. 50 ohm BNC-connector.
The set was designed for field use with a 3,65 kg multi-voltage battery BA-279, or for vehicular use with a 24 volts PSU and audio-amplifier AM-598.
All tubes, exept the noval 5A6, are of Special Quality subminiature B5A type. The factory aligned complete IF circuits, including the mini-tubes, are housed in sealed metal cans with B7G-pins, as well as the discriminator-circuit and the pulse sweep generator.
Similar, but with different frequency-ranges are RT-174A / PRC-8 20-28 MHz, and RT-176A / PRC-10 38-55 MHz.
A variant with different circuitry and 16 tubes, but a look-alike, is the RT-175 / PRC-9. Another variant is the 1 channel, 30-42 MHz, crystal controlled RT-339/PRC28.
Net weight (2.2 lb = 1 kg) 8.420 kg / 18 lb 8.7 oz (18.546 lb)
Source of data -- Original-techn. papers.
Mentioned in -- Original-techn. papers.

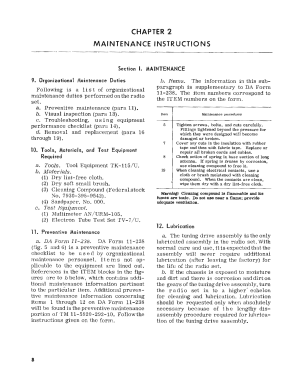

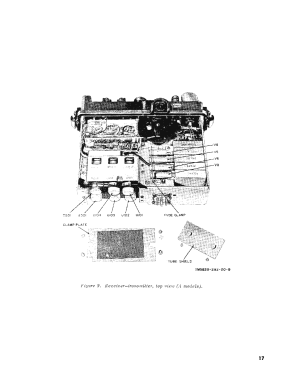

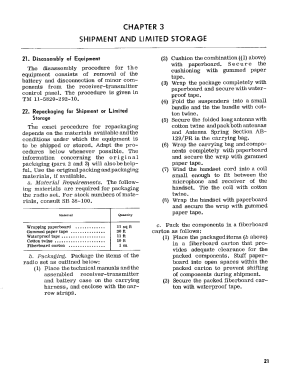

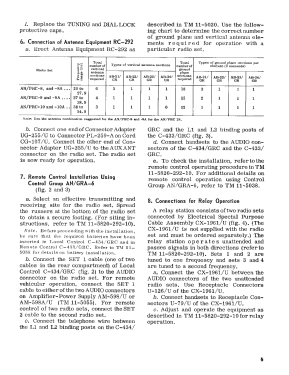

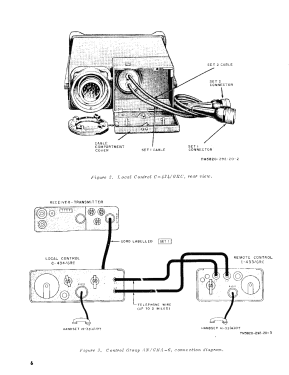

Literature/Schematics (1) -- Original-techn. papers. (TM11-612. TM11-4065.)

Model page created by Jan Terranea. See "Data change" for further contributors.
