386-W Type 1938 Lautsprecher ohne Erregerspule

386-W; Minerva-Radio (ID = 324550) Radio

386-W; Minerva-Radio (ID = 350983) Radio

386-W; Minerva-Radio (ID = 108720) Radio
386-W; Minerva-Radio (ID = 229844) Radio 386-W; Minerva-Radio (ID = 229846) Radio
386-W; Minerva-Radio (ID = 229845) Radio 386-W; Minerva-Radio (ID = 229843) Radio
386-W; Minerva-Radio (ID = 706975) Radio 386-W; Minerva-Radio (ID = 711447) Radio
386-W; Minerva-Radio (ID = 763881) Radio 386-W; Minerva-Radio (ID = 763883) Radio
386-W; Minerva-Radio (ID = 765688) Radio 386-W; Minerva-Radio (ID = 765689) Radio
Use red slider bar for more.
386-W; Minerva-Radio (ID = 229844) Radio
Minerva-Radio: 386-W [Radio] ID = 229844 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 386-W Type 1938 Lautsprecher ohne Erregerspule, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:

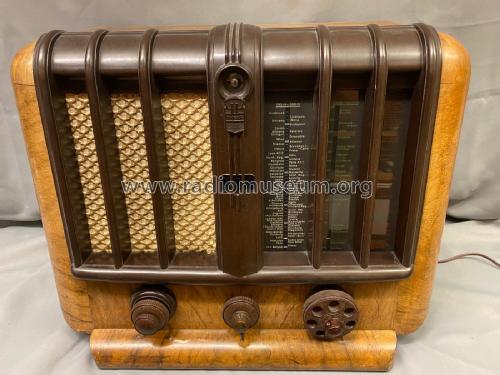

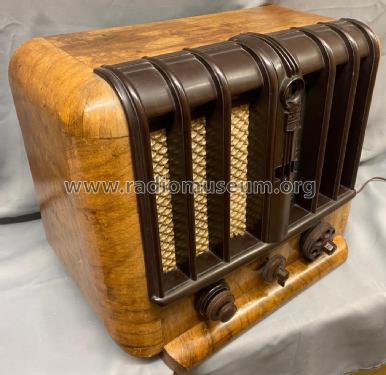

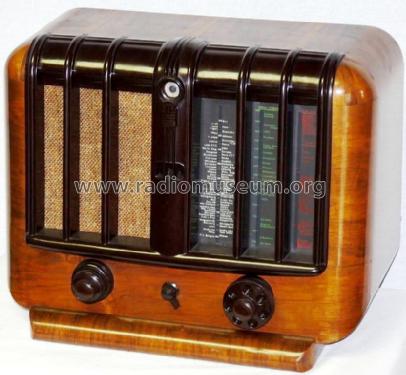

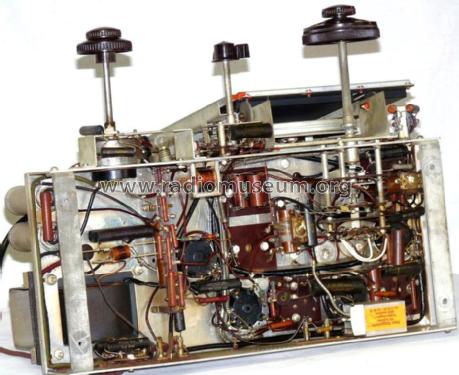

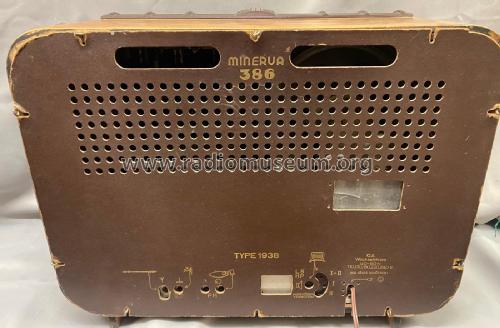

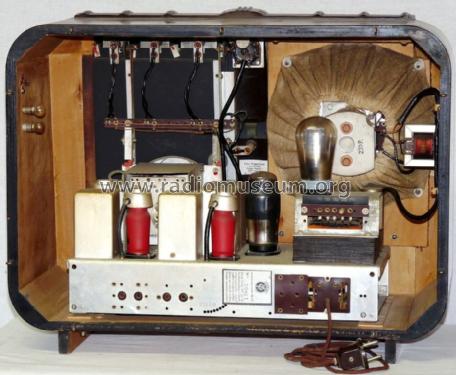

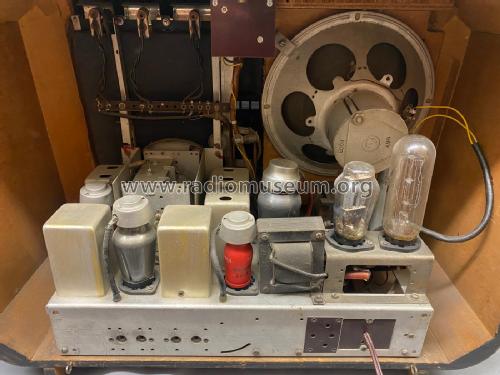

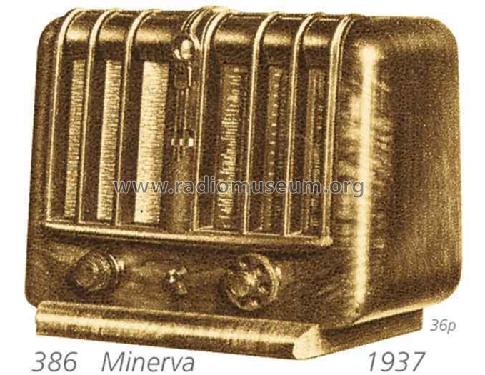

Minerva 386 W

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EL3 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 483 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 386-W [Type 1938 Lautsprecher ohne Erregerspule] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 420 x 30 mm / 20.9 x 16.5 x 1.2 inch
Notes Var.BBr.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 480.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

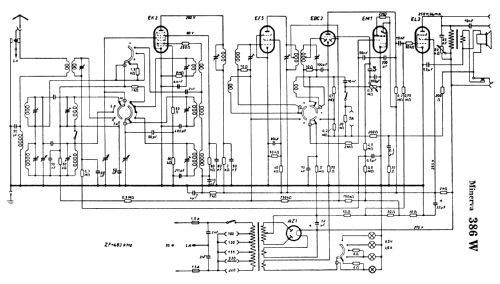

Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
