506W/21; Minerva-Radio (ID = 109007) Radio
506W/21; Minerva-Radio (ID = 315299) Radio 506W/21; Minerva-Radio (ID = 315300) Radio
506W/21; Minerva-Radio (ID = 315303) Radio 506W/21; Minerva-Radio (ID = 315301) Radio
506W/21; Minerva-Radio (ID = 315302) Radio 506W/21; Minerva-Radio (ID = 316885) Radio
506W/21; Minerva-Radio (ID = 1401346) Radio 506W/21; Minerva-Radio (ID = 1401347) Radio
506W/21; Minerva-Radio (ID = 1401348) Radio 506W/21; Minerva-Radio (ID = 1401349) Radio
Use red slider bar for more.
506W/21; Minerva-Radio (ID = 315299) Radio

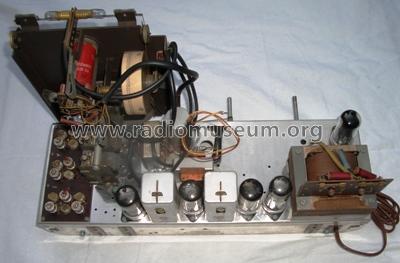

Minerva-Radio: 506W/21 [Radio] ID = 315299 400x276
Select picture or schematic to display from thumbnails on the right and click for download.
For model 506W/21, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
A_Minerva_506W/21_Front

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EAF21 EAF21 EBL21 EM34 AZ21
Main principle Super-Heterodyne (Super in general); ZF/IF 483 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 506W/21 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 335 x 220 mm / 18.9 x 13.2 x 8.7 inch
Notes Extraabgriffe am Netztrafo für +10% und -10% Netzspannung.
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

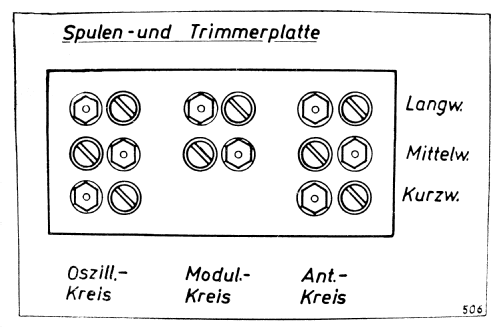

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
