• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104380

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• from Radiomuseum.org

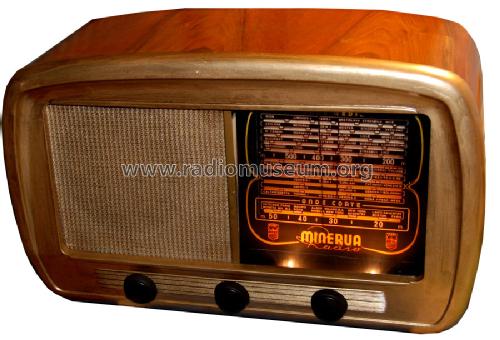

• Model: 515/6 - Minerva Ital-Minerva; Milano

• Dimensions (WHD)
• 475 x 280 x 190 mm / 18.7 x 11 x 7.5 inch

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Literature/Schematics (1)
• Collezione di Schemi, Scuola Radio Elettra 1953

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
