• Country
• France

• Manufacturer / Brand
• Minerva Radio; Paris

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 264613

• Number of Tubes
• 6

• Valves / Tubes
• 6AJ8 ECH81 6N8 6V4 EM85 EL84

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

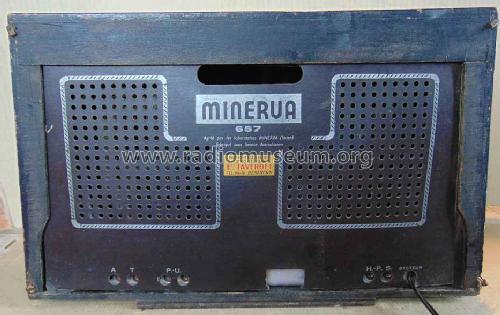

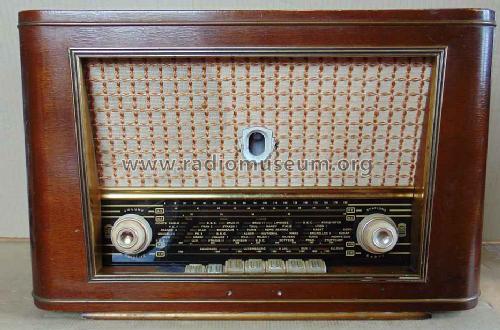

• Model: 657 - Minerva Radio; Paris

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 305 x 215 mm / 18.9 x 12 x 8.5 inch

• Notes

• Breite unten 480 mm, oben 445 mm.



• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
