Asso 473/1 ECH4 & EBL1

Asso 473/1; Minerva Ital-Minerva (ID = 1732344) Radio Asso 473/1; Minerva Ital-Minerva (ID = 1732346) Radio

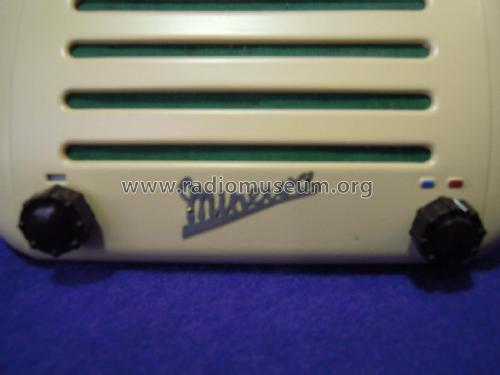

Asso 473/1; Minerva Ital-Minerva (ID = 1732347) Radio Asso 473/1; Minerva Ital-Minerva (ID = 1732349) Radio
Asso 473/1; Minerva Ital-Minerva (ID = 1734170) Radio Asso 473/1; Minerva Ital-Minerva (ID = 1734172) Radio
Use red slider bar for more.
Asso 473/1; Minerva Ital-Minerva (ID = 1732344) Radio
Minerva Ital-Minerva: Asso 473/1 [Radio] ID = 1732344 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Asso 473/1 ECH4 & EBL1, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH4 EBL1 6X5GT
schematic requested
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt

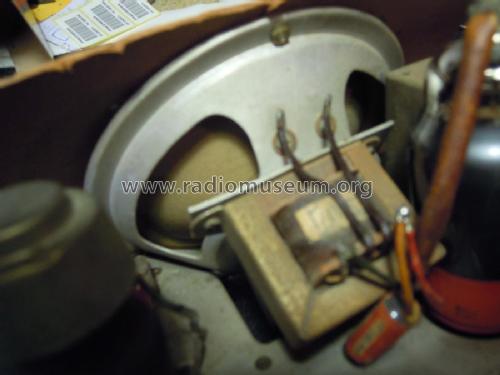

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Asso 473/1 [ECH4 & EBL1] - Minerva Ital-Minerva; Milano
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Variante del modello che monta le valvole EF9 e WE13

Nella codifica dei modelli Minerva le prime due cifre riguardano la data dell'apparecchio.

473 = 1947 3 valvole.

Model page created by Massimo Paolieri. See "Data change" for further contributors.
