Camerad U ; Minerva-Radio (ID = 3892) Radio

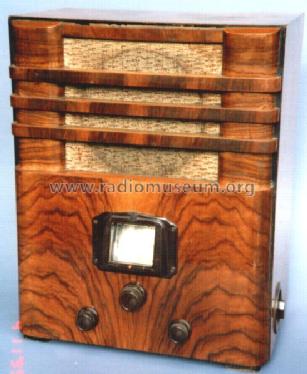

Minerva-Radio: Camerad U [Radio] ID = 3892 552x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camerad U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Camerad

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CK1 CF1 CL2 CY1
Main principle Superheterodyne (common); ZF/IF 483 kHz; Super, reaction, but not adjustable
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 150-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Camerad U - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 368 x 460 x 236 mm / 14.5 x 18.1 x 9.3 inch
Notes Diode
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 430.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

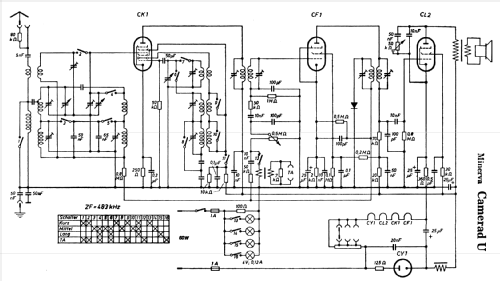

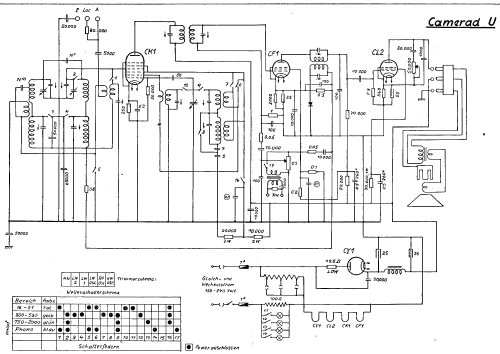

Circuit diagram reference Lange + Schenk
