Capri 545/1

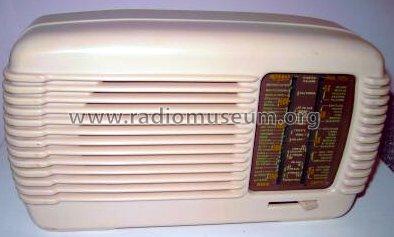

Capri 545/1; Minerva Ital-Minerva (ID = 1378822) Radio Capri 545/1; Minerva Ital-Minerva (ID = 566411) Radio
Capri 545/1; Minerva Ital-Minerva (ID = 1222191) Radio Capri 545/1; Minerva Ital-Minerva (ID = 1222192) Radio
Capri 545/1; Minerva Ital-Minerva (ID = 1378818) Radio Capri 545/1; Minerva Ital-Minerva (ID = 1378819) Radio
Capri 545/1; Minerva Ital-Minerva (ID = 1378820) Radio Capri 545/1; Minerva Ital-Minerva (ID = 1378821) Radio
Capri 545/1; Minerva Ital-Minerva (ID = 1378823) Radio
Use red slider bar for more.
Capri 545/1; Minerva Ital-Minerva (ID = 1378822) Radio
Minerva Ital-Minerva: Capri 545/1 [Radio] ID = 1378822 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capri 545/1, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Capri 545/1 - Minerva Ital-Minerva; Milano
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 150 x 110 mm / 10.6 x 5.9 x 4.3 inch
Notes Guida Pratica AR I indica erroneamente convertitrice ECH42 anziché UCH81.
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.
