Color 707 C-Nr. 002/707 ab Ch.Nr. 330001

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471007) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471010) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471013) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471014) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471015) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471016) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471017) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471018) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471019) Television

Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1471020) Television
Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1526444) Television Color 707 C-Nr. 002/707; Minerva-Radio (ID = 227047) Television
Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1526446) Television
Use red slider bar for more.
Color 707 C-Nr. 002/707; Minerva-Radio (ID = 1526444) Television

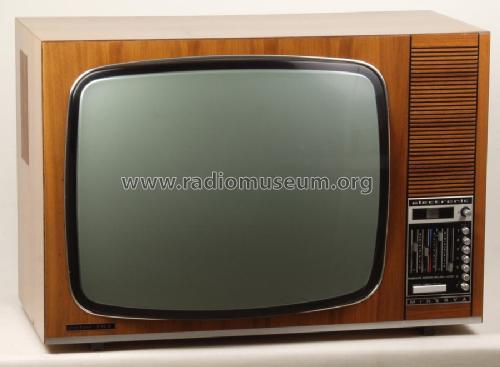

Minerva-Radio: Color 707 C-Nr. 002/707 [Television] ID = 1526444 900x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color 707 C-Nr. 002/707 ab Ch.Nr. 330001, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 10: A63-200X or A63-120X PCL805 PCF802 PL504 PY88 PL509 ECC82 PL95 PY500A GY501
Semiconductors (the count is only for transistors) 34:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Color 707 C-Nr. 002/707 [ab Ch.Nr. 330001] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 760 x 525 x 335 mm / 29.9 x 20.7 x 13.2 inch
Notes

Mit 63cm Bildröhre.


Dioden-VHF/UHF-Tuner nach CCIR B/G für 7 Programme, Single-Chassis, getrennte Hochspannungserzeugung, Anschluß für Fernregler VII.
Ab Chassis Nr. 330001.
Edelholzkassette in Nuß, hell-matt; Nuß, hell-poliert; mittel-dunkel; Schleiflack, weiß; Teak, Palisander.
Net weight (2.2 lb = 1 kg) 44 kg / 96 lb 14.7 oz (96.916 lb)
Price in first year of sale 19'950.00 ATS
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
