Consul 3 electronic 708/24

Consul 3 electronic 708/24; Minerva-Radio (ID = 144406) Television

Consul 3 electronic 708/24; Minerva-Radio (ID = 144407) Television

Consul 3 electronic 708/24; Minerva-Radio (ID = 144408) Television
Consul 3 electronic 708/24; Minerva-Radio (ID = 154600) Television Consul 3 electronic 708/24; Minerva-Radio (ID = 438954) Television
Use red slider bar for more.
Consul 3 electronic 708/24; Minerva-Radio (ID = 154600) Television
Minerva-Radio: Consul 3 electronic 708/24 [Television] ID = 154600 640x480

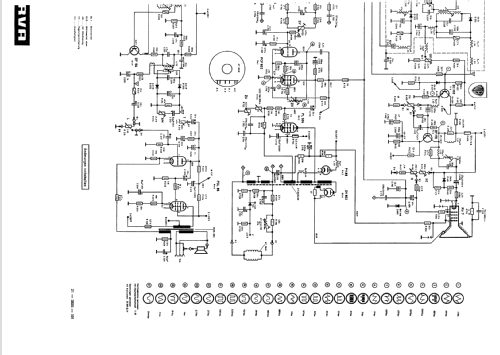

Select picture or schematic to display from thumbnails on the right and click for download.
For model Consul 3 electronic 708/24, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1969–1971 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCF802 PCL86 PCL805 PL504 PY88 DY802 A61-120W
Semiconductors (the count is only for transistors) 21:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Consul 3 electronic 708/24 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 715 x 505 x 330 mm / 28.1 x 19.9 x 13 inch
Notes 24" 61cm s/w TV, Empfangsbereich: VHF, Band I + III; UHF, Band IV + V. 38 Dioden, 1 IC. Edelholzkassette in Nuß, hell-matt; Nuß, hell-poliert; mittel-dunkel.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
