Drucktastensuper 570DT/K

Drucktastensuper 570DT/K; Minerva-Radio (ID = 52763) Radio Drucktastensuper 570DT/K; Minerva-Radio (ID = 1284813) Radio
Drucktastensuper 570DT/K; Minerva-Radio (ID = 1284814) Radio Drucktastensuper 570DT/K; Minerva-Radio (ID = 1284815) Radio
Drucktastensuper 570DT/K; Minerva-Radio (ID = 1284818) Radio
Use red slider bar for more.
Drucktastensuper 570DT/K; Minerva-Radio (ID = 52763) Radio
Minerva-Radio: Drucktastensuper 570DT/K [Radio] ID = 52763 300x285
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drucktastensuper 570DT/K, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:

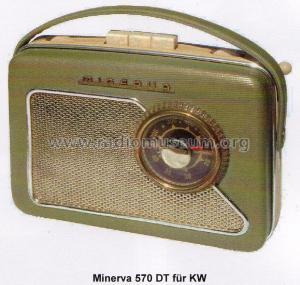

Quelle: Museums Bote. Minerva 570DT mit eingebauter Teleskopantenne

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC169 OC45 OC45 OC71 OC71 OC72 OC72
schematic requested
Main principle Superheterodyne (common); ZF/IF 461 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2 x 3 + 1 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Drucktastensuper 570DT/K - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 130 x 55 mm / 7.9 x 5.1 x 2.2 inch
Notes 7 Trans.; 3 Tasten . Betrieb mit 2 1/2 Stabbatterien zu 3 V
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 122/2004, S.10 ff, Gerätebeschreibung)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
