• Year
  • 1968
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 84302

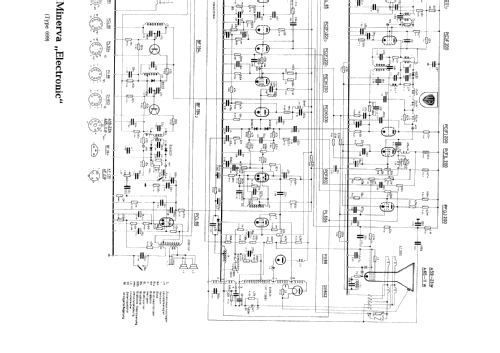

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • AC/DC-set / 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Electronic 699 [23 Zoll] - Minerva-Radio Radiola-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 700 x 530 x 340 mm / 27.6 x 20.9 x 13.4 inch
  • Notes
  • Fernsehband I und III (Kanäle 2-12), Band IV/V (Kanäle 20-60). 23-Zoll-Bildröhre.
  • Net weight (2.2 lb = 1 kg)
  • 26.5 kg / 58 lb 5.9 oz (58.37 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
