• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129031

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 UF89 UABC80 DM70 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line (AC, UC or DC not known) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

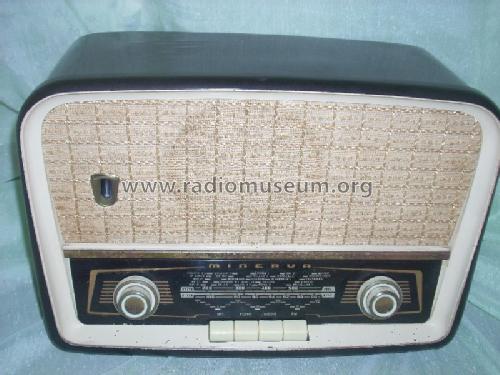

• Model: Gardena 576/2 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 350 x 230 x 160 mm / 13.8 x 9.1 x 6.3 inch

• Source of data
• Guida Pratica Antique Radio II (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
