• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190975

• • alternative name: Cozzi Luigi Dell'Aquila

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC71 OC72 OC72 OA70

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

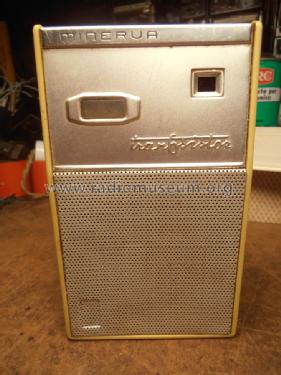

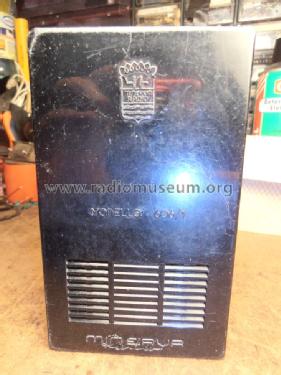

• Model: Jet 606/1 - Minerva Ital-Minerva; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 75 x 125 x 38 mm / 3 x 4.9 x 1.5 inch

• Notes

• 6 varianti di colore.

• Net weight (2.2 lb = 1 kg)
• 0.413 kg / 0 lb 14.6 oz (0.91 lb)

• Price in first year of sale
• 22,500.00 ITL

• Mentioned in
• Catalogo ANIE (1960-61)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 252 models, 198 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
