• Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 115611
    • alternative name: Cozzi Luigi Dell'Aquila

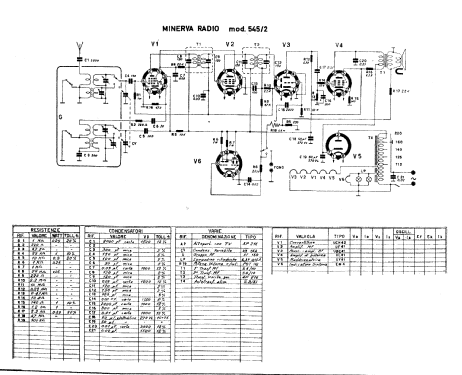

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Lario 545/2 - Minerva Ital-Minerva; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 285 x 190 mm / 18.9 x 11.2 x 7.5 inch
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
