Minerphon MW3

Minerphon MW3; Minerva-Radio (ID = 339918) Radio
Minerphon MW3; Minerva-Radio (ID = 134082) Radio Minerphon MW3; Minerva-Radio (ID = 134085) Radio

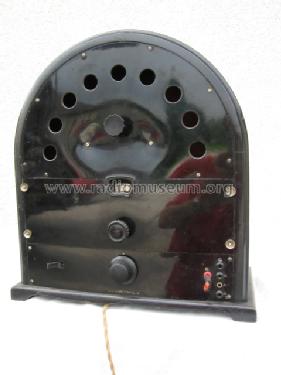

Minerphon MW3; Minerva-Radio (ID = 134084) Radio Minerphon MW3; Minerva-Radio (ID = 10159) Radio
Minerphon MW3; Minerva-Radio (ID = 134083) Radio Minerphon MW3; Minerva-Radio (ID = 134086) Radio
Minerphon MW3; Minerva-Radio (ID = 613819) Radio Minerphon MW3; Minerva-Radio (ID = 613820) Radio
Minerphon MW3; Minerva-Radio (ID = 613821) Radio Minerphon MW3; Minerva-Radio (ID = 1106840) Radio
Use red slider bar for more.
Minerphon MW3; Minerva-Radio (ID = 134082) Radio
Minerva-Radio: Minerphon MW3 [Radio] ID = 134082 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minerphon MW3, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Minerphon MW3

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E438 E438 B443 or B409 506
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: Minerphon MW3 - Minerva-Radio Radiola-
Material Various materials
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 362 x 394 x 187 mm / 14.3 x 15.5 x 7.4 inch
Notes Gehäuse aus Holz und meliertem Pertinax
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 375.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
