Minerva-Radio: Minor 43/110 616 [Television] ID = 2447534 1400x1269
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minor 43/110 616, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PCC88 PCF80 EF183 EF184 PCL84 PCF80 PCL86 PCF80 PCL85 PCF80 PL36 PY88 DY87 AW43-88
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Minor 43/110 616 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 430 x 410 mm / 20.9 x 16.9 x 16.1 inch
Notes Empfangsbereich VHF Band I+III Kanal(2-11 und 2A), UHF vorbereitet.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 4'390.00 öS
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

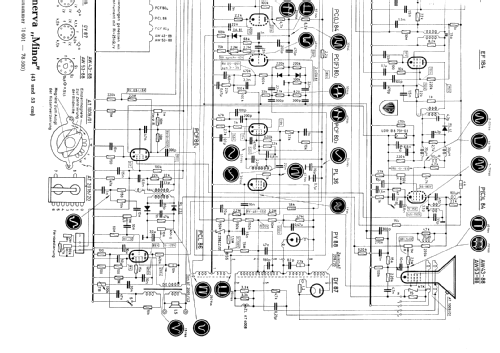

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
