• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9876

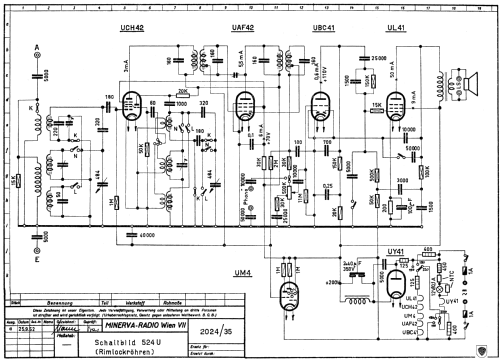

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 483 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110, 150, 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

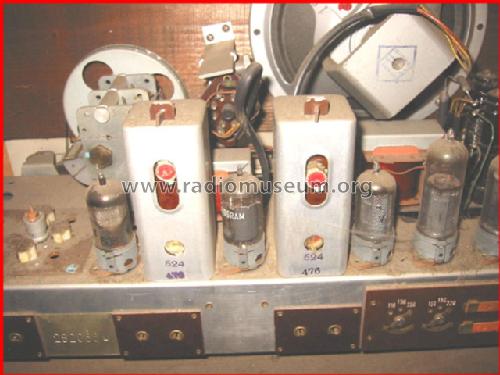

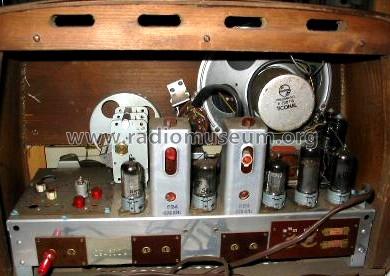

  • Model: Minor U 524U [Rimlockröhren] - Minerva-Radio Radiola-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 425 x 300 x 200 mm / 16.7 x 11.8 x 7.9 inch
  • Notes
  • KW 25-32 oder 39-51 möglich
  • Price in first year of sale
  • 1,385.00 öS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
