Mirando U 514K; Minerva-Radio (ID = 254788) Radio
Minerva-Radio: Mirando U 514K [Radio] ID = 254788 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mirando U 514K, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
MINERVA MIRANDO FRONT

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UBC41 UL41 UM4 UY41 Heissleiter
Main principle Superheterodyne (common); ZF/IF 451 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Mirando U 514K - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 325 x 220 x 170 mm / 12.8 x 8.7 x 6.7 inch
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Price in first year of sale 1'350.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

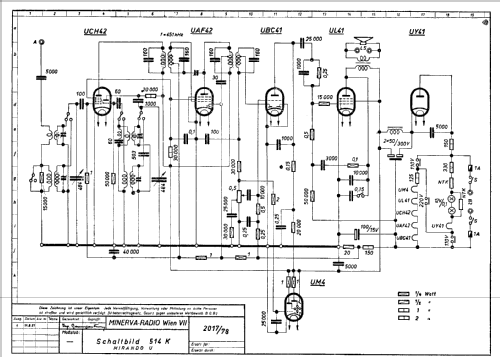

Circuit diagram reference Lange-Nowisch
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Minerva-Radio: Mirando U 514K
Threads: 1 | Posts: 1
Hits: 1365     Replies: 0
minerva: 514K; Mirando U
Gerhard Heigl
13.Sep.03
  1 orig. Preis 1350 S;
