Presto 48-W Type 1938

Presto 48-W; Minerva-Radio (ID = 303330) Radio

Presto 48-W; Minerva-Radio (ID = 350979) Radio

Presto 48-W; Minerva-Radio (ID = 108657) Radio
Presto 48-W; Minerva-Radio (ID = 74161) Radio Presto 48-W; Minerva-Radio (ID = 109429) Radio
Presto 48-W; Minerva-Radio (ID = 109427) Radio Presto 48-W; Minerva-Radio (ID = 109428) Radio
Presto 48-W; Minerva-Radio (ID = 254866) Radio Presto 48-W; Minerva-Radio (ID = 575092) Radio
Presto 48-W; Minerva-Radio (ID = 575093) Radio Presto 48-W; Minerva-Radio (ID = 575094) Radio
Presto 48-W; Minerva-Radio (ID = 575095) Radio Presto 48-W; Minerva-Radio (ID = 575096) Radio
Use red slider bar for more.
Presto 48-W; Minerva-Radio (ID = 74161) Radio
Minerva-Radio: Presto 48-W [Radio] ID = 74161 600x437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Presto 48-W Type 1938, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Presto 48A

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EL3 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Presto 48-W [Type 1938] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 320 x 220 mm / 18.1 x 12.6 x 8.7 inch
Notes Variable Bandbreite, -30% Stromsparschalter.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

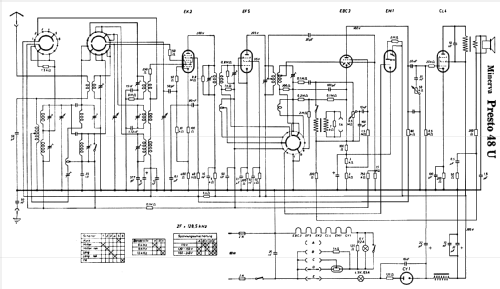

Circuit diagram reference Lange-Nowisch
Literature/Schematics (1) -- Original-techn. papers.
