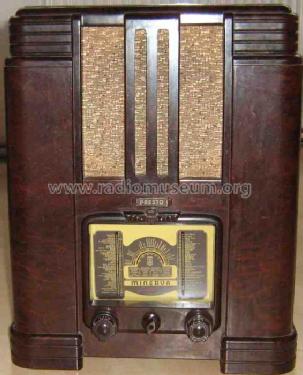

Presto U Pr. ; Minerva-Radio (ID = 613525) Radio Presto U Pr. ; Minerva-Radio (ID = 613526) Radio
Presto U Pr. ; Minerva-Radio (ID = 613527) Radio
Use red slider bar for more.

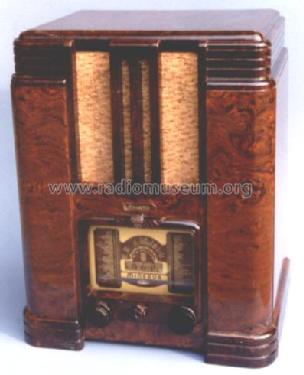

Presto U Pr. ; Minerva-Radio (ID = 3084) Radio
Minerva-Radio: Presto U Pr. [Radio] ID = 3084 398x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model Presto U Pr., Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Presto U

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF1 CB2 CL2 CY2
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Presto U Pr. - Minerva-Radio Radiola-
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 385 x 470 x 255 mm / 15.2 x 18.5 x 10 inch
Notes =Ch.Allegro U
Price in first year of sale 460.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
