Record - T 637 23"

Record - T 637; Minerva-Radio (ID = 139186) Television

Record - T 637; Minerva-Radio (ID = 139187) Television

Record - T 637; Minerva-Radio (ID = 139188) Television
Record - T 637; Minerva-Radio (ID = 139184) Television
Use red slider bar for more.
Record - T 637; Minerva-Radio (ID = 139184) Television
Minerva-Radio: Record - T 637 [Television] ID = 139184 802x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Record - T 637 23', Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: PC88 PC86 PCC189 PCF86 EF183 EF184 PCL84 PCL84 ECH84 PCL85 PCL86 PCF80 PL500 PY88 DY87 23SP4
Semiconductors (the count is only for transistors) 3: AF116 AF116 OC75
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Record - T 637 [23"] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 750 x 530 x 375 mm / 29.5 x 20.9 x 14.8 inch
Notes Fernsehband I und III (Kanäle 2-11 und 2A), Band IV/V (Kanäle 21-60). 23-Zoll-Bildröhre. Auch ohne UHF lieferbar (6090.- öS).
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Price in first year of sale 6'690.00 öS
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

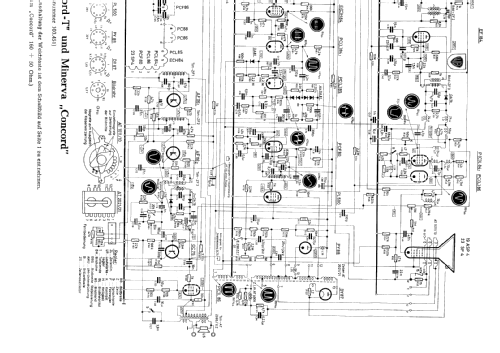

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
